Top Cladding Installation Plans Engineering Protocols and Envelop

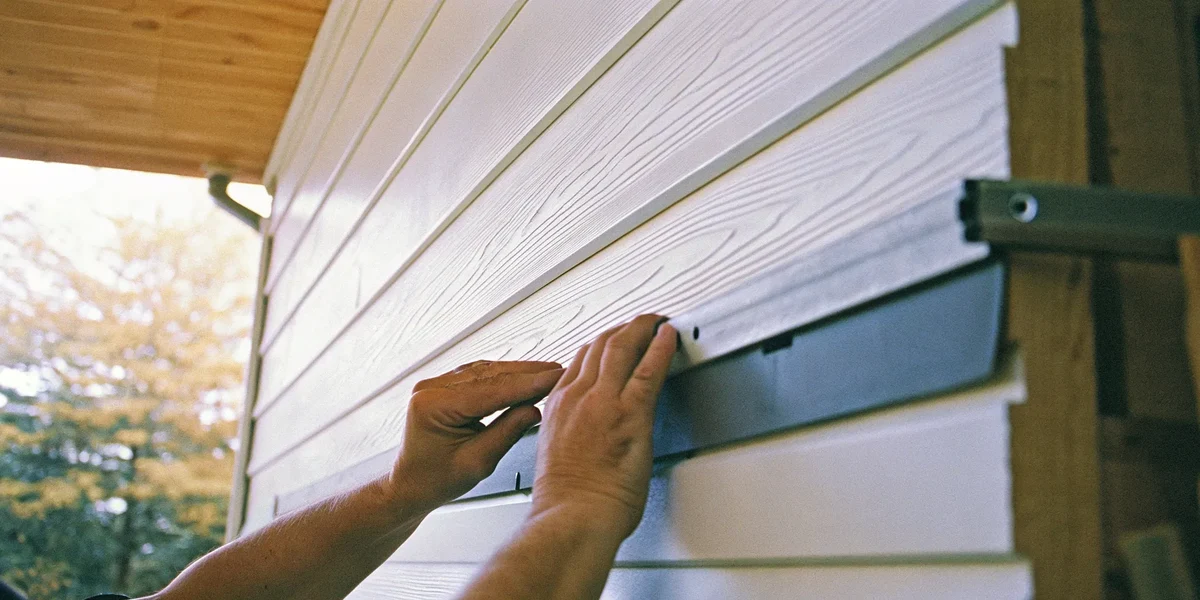

Architectural envelope design requires structured technical documentation to translate conceptual building forms into resilient physical structures. Flawless exterior walls rely on rigorous jobsite management and precise engineering blueprints. Top Cladding Installation Plans. Exterior wall finishes serve as multi-layered environmental control systems, protecting primary framing against weather exposure. These engineered assemblies regulate interstitial vapor movement, prevent bulk water intrusion, and resist wind pressure continuously.

Developing comprehensive technical schematics ensures every mechanical connection within an exterior assembly is thoroughly planned before site operations commence. From complex parapet flashing transitions to recessed window penetrations, accurate blueprints prevent jobsite errors that compromise structural integrity. Omitting detailed schematics often leads installation crews toward generic trade habits that fail local building codes. Properly drafted architectural plans establish a reliable standard for general contractors, code officials, and trade mechanics.

Evolving energy codes demand continuous exterior thermal insulation, fundamentally altering moisture movement dynamics inside modern wall cavities. Managing continuous thermal resistance alongside vapor diffusion requires integrating water-resistive barriers, drainage channels, and furring matrixes seamlessly. Establishing clear technical parameters minimizes unexpected change orders, limits material waste, and reduces long-term structural liability. Investing in detailed architectural schematics turns routine exterior finishing into a controlled, high-performance building engineering process.

Table of Contents

Understanding “Top Cladding Installation Plans”

Multi-Layered Technical Documentation

Developing top cladding installation plans involves creating fully integrated architectural drawings, structural fastening schedules, and flashing details. These comprehensive documents dictate how every protective layer within the building envelope interacts under severe environmental stress. Architects draft elevation views, section details, and material transitions to guarantee ventilated rainscreen cavities drain bulk water efficiently. Building code officials analyze these structural blueprints to verify local wind-load compliance before issuing construction permits.

Structural Oversimplifications and Field Risks

A primary driver of building envelope failure is executing exterior wall upgrades using basic elevation sketches instead of fully detailed plans. Elementary contractor estimates frequently omit critical flashing dimensions, weather-barrier lap distances, and material expansion allowances. Lacking explicit architectural guidance, installation mechanics may reverse-lap water control membranes or over-drive pneumatic fasteners into sheathing. These execution errors create pathways for bulk liquid intrusion, initiating concealed framing rot and interior mold growth.

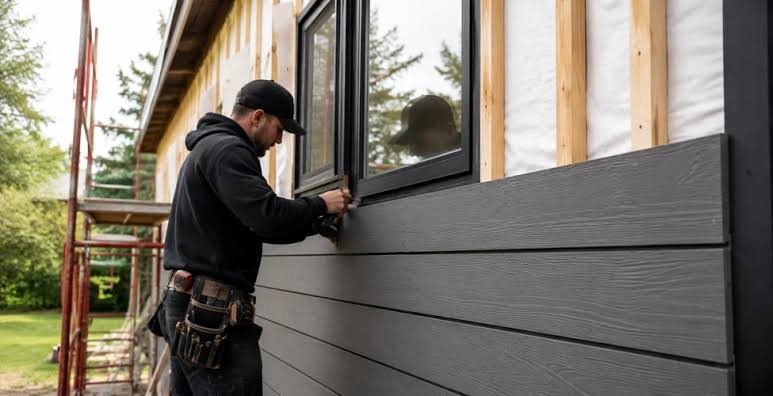

Rainscreen Integration and Assembly Mechanics

High-performance architectural plans define how pressure-equalized rainscreen assemblies manage water, air, and thermal loads dynamically. Detailed cross-sections illustrate the exact layout of furring channels, insect screens, continuous insulation boards, and self-adhered membranes. Specifying strict installation sequences prevents trade conflicts during construction, ensuring window pan flashings integrate mechanically into the drainage plane. Prioritizing engineered assembly details over cosmetic surface choices preserves the structural health of the building envelope across decades.

Deep Contextual Background and Technical Evolution

Traditional Timber Framing and Single-Layer Barriers

Early American residential construction relied on heavy timber framing clad directly with uninsulated wood lap siding or thick brick masonry. Colonial builders utilized dense old-growth lumber, which possessed natural rot resistance that endured moderate seasonal dampness. Uninsulated wall cavities allowed abundant indoor heat energy to pass freely through exterior walls during cold winter months. This continuous heat flow dried wet wood sheathing rapidly, preventing fungal growth despite simple flashing methods and unsealed panel joints.

Mid-Century Synthetic Skins and Moisture Traps

The post-war suburban construction boom introduced mass-produced synthetic cladding materials, including sheet aluminum, asphalt shingles, and early vinyl extrusions. These lightweight products simplified jobsite installation workflows and eliminated immediate painting demands for production home builders. However, contractors simultaneously began installing interior cavity insulation without updating traditional exterior drainage strategies. Trapping moisture behind impermeable synthetic skins caused widespread concealed timber rot, paint peeling, and structural shear failure.

Modern Code Compliance and Rainscreen Standards

Contemporary envelope engineering combines advanced material science, continuous thermal barriers, and strict municipal building codes. Modern architects produce detailed schematics specifying fiber cement composites, architectural zinc panels, thermally modified wood, and rainscreen matrixes. Updated energy codes mandate continuous exterior insulation, altering how heat and moisture move through insulated wall assemblies under changing seasonal temperatures. Consequently, contemporary construction plans must detail every mechanical fastener, flashing leg, and expansion gap to ensure structural durability.

Conceptual Frameworks and Architectural Models Top Cladding Installation Plans

The Control Layer Sequence Framework

Analyzing exterior wall plans requires evaluating how cladding materials integrate with four continuous protective control layers. High-performance architectural drawings must illustrate continuous control barriers for water, air, thermal transfer, and water vapor.

Water and Air Control Layer Integration

The primary water drainage plane must divert bulk liquid downward and away from structural sheathing penetrations. Flashing details around window bucks and cantilevered floor joists must integrate mechanically into this primary drainage layer.

Thermal and Vapor Layer Alignment

Continuous exterior insulation layers must sit tightly against air-barrier membranes to prevent convective air loops inside wall cavities. Eliminating air leakage paths lowers HVAC energy demands while preventing warm, humid indoor air from condensing inside cold wall structures.

The Pressure-Equalized Rainscreen Principle

Engineered rainscreen plans detail a ventilated air cavity positioned directly between the exterior cladding panels and the weather-resistive barrier. This open drainage space equalizes air pressure between the outside environment and the interior wall cavity during severe storms.

Pressure Equalization Mechanics

Equalizing air pressure across exterior panel faces stops wind-driven rainwater from being forced through narrow panel joints and fastener holes. Rapid air movement inside ventilated cavity channels evaporates residual moisture, keeping underlying structural wall assemblies completely dry.

Drainage Geometry and Venting Details

Drafting continuous top and bottom vent openings maintains uninhibited vertical airflow throughout the entire rear cavity space. Insect screens must be specified over bottom weep vents to block pest intrusion without restricting natural air circulation or water drainage.

Key Specification Categories and Assembly Variations

Fiber Cement Rainscreen Assemblies

Fiber cement cladding plans combine dense Portland cement panels with engineered furring channels to form a durable, fire-resistant exterior assembly. These comprehensive drawings specify specialized cutting tools, carbide fasteners, and strict expansion gap tolerances around architectural window trims.

Dimensional Stability and Coating Retention

Fiber cement panels exhibit minimal thermal expansion, enabling tight panel joints when installed according to manufacturer specifications. Factory-applied primer and paint coatings typically maintain structural integrity for fifteen to twenty years before requiring field touch-ups or complete repainting.

Structural Weight and Handling Schedules

The high density of fiber cement panels adds significant dead weight to wall framing, requiring structural fastener schedules in project plans. Architectural drawings must specify heavy-duty framing studs and specialized corrosion-resistant screws capable of supporting panel loads under high wind pressures.

Thermally Modified Timber Systems

Thermally modified timber plans specify chemical-free, heat-treated wood cladding boards mounted over ventilated rainscreen matrixes. The thermal alteration process alters wood cellular structures, permanently reducing moisture absorption capabilities and eliminating organic nutrients required by wood-rotting fungi.

Chemical-Free Rot and Pest Resistance

Thermal modification produces stable, lightweight timber panels that resist fungal decay and wood-boring insects naturally without toxic chemical treatments. The resulting material exhibits minimal swelling or shrinking when exposed to severe seasonal humidity shifts.

Brittle Material Fastener Requirements

The high-temperature alteration process reduces the natural flexural bending strength of timber fibers, making modified boards somewhat brittle. Architectural drawings must require pre-drilled fastener pilot holes near board ends to prevent localized splitting during stainless steel face-nailing operations.

Specification Category	Flame Spread Index	Expected Assembly Lifespan	Primary Detail Requirement
Fiber Cement Rainscreen	Class A (Non-combustible)	30 – 50 Years	Continuous drainage cavity & dust-controlled cuts
Thermally Modified Wood	Class B or C	25 – 40 Years	Stainless steel fasteners & pre-drilled ends
Engineered Wood Panels	Class B	20 – 30 Years	Factory edge-seal painting & drainage gaps
Architectural Metal System	Class A (Non-combustible)	40 – 70+ Years	Thermal expansion clips & membrane underlayment

Detailed Real-World Scenarios Top Cladding Installation Plans

High-Wind Coastal Marine Exposure

A commercial oceanfront facility along the Maine coast experienced continuous salt spray, high ambient humidity, and severe wind-driven rain. The project engineer required a comprehensive rainscreen plan designed to withstand one-hundred-mile-per-hour wind pressures without corroding.

Material Specification and Fastener Engineering

Architects drafted top cladding installation plans specifying heavy-gauge zinc panels mounted over an engineered drainage matrix using 316-grade stainless steel fasteners. Zinc forms a self-healing natural carbonate patina when exposed to marine air, offering superior long-term corrosion resistance across decades.

Flashing Detail and Drainage Construction

Drafted schematics required a self-adhered butyl weather-resistive membrane applied directly over marine-grade plywood sheathing to seal around fastener penetrations. Stainless steel z-furring channels were specified vertically to create an open three-quarter-inch drainage cavity behind the metal panels.

High-Altitude Freeze-Thaw Mountain Zone

A custom residential home in Utah experienced extreme seasonal temperature swings, heavy winter snowpack, and intense solar ultraviolet exposure. Existing wood siding suffered severe thermal checking, allowing melting snowbanks to penetrate lower wall framing assemblies.

Rainscreen Base Elevation Detailing

Contractors executed detailed plans that elevated thick fiber cement lap siding sixteen inches above finished ground grade to clear snowlines. Heavy copper z-flashings were integrated above natural stone masonry skirts, providing a durable transition layer that sheds meltwater effectively.

Thermal Barrier Isolation Construction

A continuous exterior rigid polyisocyanurate insulation layer was secured behind a ventilated rainscreen matrix to prevent indoor heat loss. Isolating cold outer panels from warm structural framing eliminated localized snow melting, preventing destructive ice dam formation along lower roof eaves.

Planning, Cost, and Resource Dynamics

Upfront Investment versus Long-Term Asset Value

Developing detailed architectural plans requires an initial design investment, but it prevents costly field modifications and material waste during construction. Clear specifications allow general contractors to produce accurate competitive bids, eliminating budget surprises caused by missing scope items.

Labor Overhead and Field Execution Economics

Installing complex panel systems requiring specialized trade skills, custom sheet metal fabrication, or heavy crane equipment increases upfront labor expenses. Allocating financial resources toward certified trade mechanics and detailed architectural schematics guarantees proper flashing execution, protecting long-term property values.

Project Component	Budget Allocation Share	Primary Expense Drivers	Long-Term Economic Impact
Architectural Plans & Engineering	5% – 10%	CAD drafting, wind calculations, permits	Eliminates change orders & structural failures
Weather Barriers & Flashings	15% – 20%	Self-adhered membranes, copper/zinc flashings	Prevents water intrusion & framing rot
Cladding Panels & Trims	35% – 45%	Fiber cement, metal, modified timber	Defines aesthetic appeal & fire resistance
Certified Trade Labor	30% – 40%	Specialized mechanics, scaffolding, safety	Ensures code compliance & warranty validity

Tools, Strategies, and Support Systems Top Cladding Installation Plans

CAD and BIM Architectural Software

Modern building envelope drafting relies on Computer-Aided Design and Building Information Modeling software to produce three-dimensional detail schematics. These advanced digital tools detect geometric conflicts between structural framing, window bucks, and exterior cladding layers before field construction begins.

Field Moisture Diagnostic Hardware

Verifying wall assembly health and validating installation quality requires utilizing specialized electronic diagnostic hardware on the jobsite. Electronic pin-type moisture meters measure deep wood sheathing moisture levels through small probe penetrations, ensuring internal wall structures remain dry.

CAD and BIM software platforms for drafting precise three-dimensional wall assembly sections and flashing details
Calibrated blower door depressurization fans for measuring whole-house air leakage rates and envelope tightness
Digital pin-style electrical resistance moisture meters for testing internal framing wood moisture levels
Infrared thermography cameras for detecting thermal bridging voids and concealed air leakage paths
Portable sheet metal bending brakes for fabricating custom aluminum and copper pan flashings on site
Calibrated pneumatic coil nailers equipped with adjustable depth-of-drive controls to prevent panel damage
HEPA-filtered vacuum circular saws designed for safe field cutting of fiber cement panels

Risk Landscape and Failure Modes Top Cladding Installation Plans

Fastener Over-Driving and Sheathing Rupture

Pneumatic nailers set to excessive air pressures drive fastener heads deep through fiber cement or wood panels, shattering factory surface seals. Broken panel faces allow rainwater to travel along fastener shanks, reaching unsealed structural sheathing boards behind the cladding.

Reverse-Lap Flashing Installation Errors

Tucking self-adhered weather membranes under lower metal flashing legs creates an inverted overlap condition that directs running water into wall cavities. Gravity pulls intruding rainwater behind the protective weather barrier, initiating concealed timber rot and structural shear panel failure.

Inadequate Thermal Expansion Clearances

Failing to specify required clearance gaps where synthetic or metal panels butt against corner trims causes severe thermal buckling during hot summer months. Solar heat expands panel lengths, forcing constrained boards to bow outward, open perimeter seals, and admit wind-driven rain.

Governance, Maintenance, and Long-Term Adaptation

Scheduled Building Envelope Visual Audits

Maintaining high-performance exterior wall systems requires conducting thorough visual audits every autumn before severe winter weather arrives. Property owners must inspect perimeter caulk joints, clean obstructed rainscreen weep vents, and check metal flashings for physical displacement.

Professional Sealant and Joint Maintenance Cycles

Exterior elastomeric joint sealants degrade under continuous ultraviolet exposure, losing elasticity and cracking within seven to ten years of installation. Systematically removing aged joint sealants and applying high-performance polyurethane compounds prevents water intrusion around window frames.

Inspect bottom rainscreen weep vents annually to clear trapped organic debris or insect nesting materials.
Audit perimeter window expansion joints every three years to identify cracked or failing elastomeric sealants.
Wash exterior metal and fiber cement panel surfaces annually with low-pressure water to remove salt deposits.
Check roof-to-wall kickout flashings after major storm events to ensure water directs into gutters properly.
Re-apply protective ultraviolet sealants to natural wood cladding every four years to maintain original color tones.
Inspect foundation ground clearances annually to prevent soil or mulch from contacting lower siding edges.

Measurement, Tracking, and Evaluation

Non-Destructive Blower Door Envelope Testing

Quantifying total building envelope airtightness relies on standardized blower door depressurization tests measured in air changes per hour. Achieving low leakage metrics confirms that weather-resistive barriers, window flashings, and panel penetrations were sealed correctly during construction.

Rainscreen Cavity Drainage Testing

Verifying rainscreen drainage performance involves introducing measured water volumes into upper cavity vent openings using calibrated spray bars. Measuring liquid recovery rates at lower weep vents confirms that drainage pathways remain open and free of mortar droppings.

Architectural Linearity and Reveal Inspection

Inspecting installed panel reveals using rotary laser levels ensures horizontal shadow lines remain level across long building elevations. Maintaining tight tolerances within one-eighth inch across thirty linear feet guarantees visual alignment and reflects skilled trade craftsmanship.

Common Misconceptions and Oversimplifications Top Cladding Installation Plans

The Detailed Sketch Sufficiency Fallacy

A widespread industry myth claims that simple elevation sketches are sufficient for executing complex exterior cladding installations. Generic drawings omit essential flashing dimensions and fastener schedules, leading to field errors and premature moisture failures.

The Face-Sealed Waterproofing Fallacy

Inexperienced contractors often attempt to create a waterproof wall by applying heavy caulk beads along every cladding panel seam. Caulk joints degrade rapidly under ultraviolet exposure, trapping intruding water behind panels and accelerating hidden wood decay.

The Paperless Plan Reliability Myth

Assuming trade crews can manage complex rainscreen installations relying solely on verbal instructions or basic digital photos creates severe jobsite errors. Written top cladding installation plans establish legally binding performance standards that hold sub-contractors accountable for quality execution.

Ethical, Practical, or Contextual Considerations

Embodied Carbon and Sustainable Material Selection

Drafting top cladding installation plans involves evaluating total embodied carbon footprints, including raw material extraction, manufacturing emissions, and transport logistics. Specifying locally harvested timber or recycled aluminum panels lowers environmental impacts compared to importing heavy stone veneers.

Jobsite Dust Control and Respiratory Safety

Cutting fiber cement panels generates high concentrations of fine crystalline silica dust, posing serious occupational health risks to site mechanics. Professional plans enforce strict jobsite safety protocols, requiring HEPA-vacuum saws and appropriate personal protective equipment during construction.

Conclusion

Mastering building envelope upgrades requires developing detailed top cladding installation plans that integrate structural engineering principles, building science dynamics, and financial realities. Constructing durable exterior walls depends on specifying high-quality materials, designing ventilated rainscreen cavities, and enforcing strict jobsite quality standards. General contractors, architects, and property owners who prioritize comprehensive technical drawings build resilient, energy-efficient structures that endure across multi-decade operational cycles.
